Universal Design Master Bath remodel in Chanhassen

If we had a dime for every monster jacuzzi we removed…

Project Summary

The beauty of the stand-alone tub is never more apparent than when it replaces a large, cumbersome, and seldom used jacuzzi. Such was the case in this second-floor master bath remodel that also involved a new, slightly larger shower with a zero-clearance universal design shower threshold.

BEFORE: The dated look of a massive built-in Jacuzzi, honey oak vanity with a busy granite top.
AFTER: It's not often that you see carpet in a bathroom, even a partial use. We installed heated floors, replaced it all with Del Conca Quartzite porcelain tile and married that with a Riveria stand-alone soaker tub and a warmer paint color.


Before

BEFORE: Dark and dated, tiny shower is out weighed by massive jacuzzi.

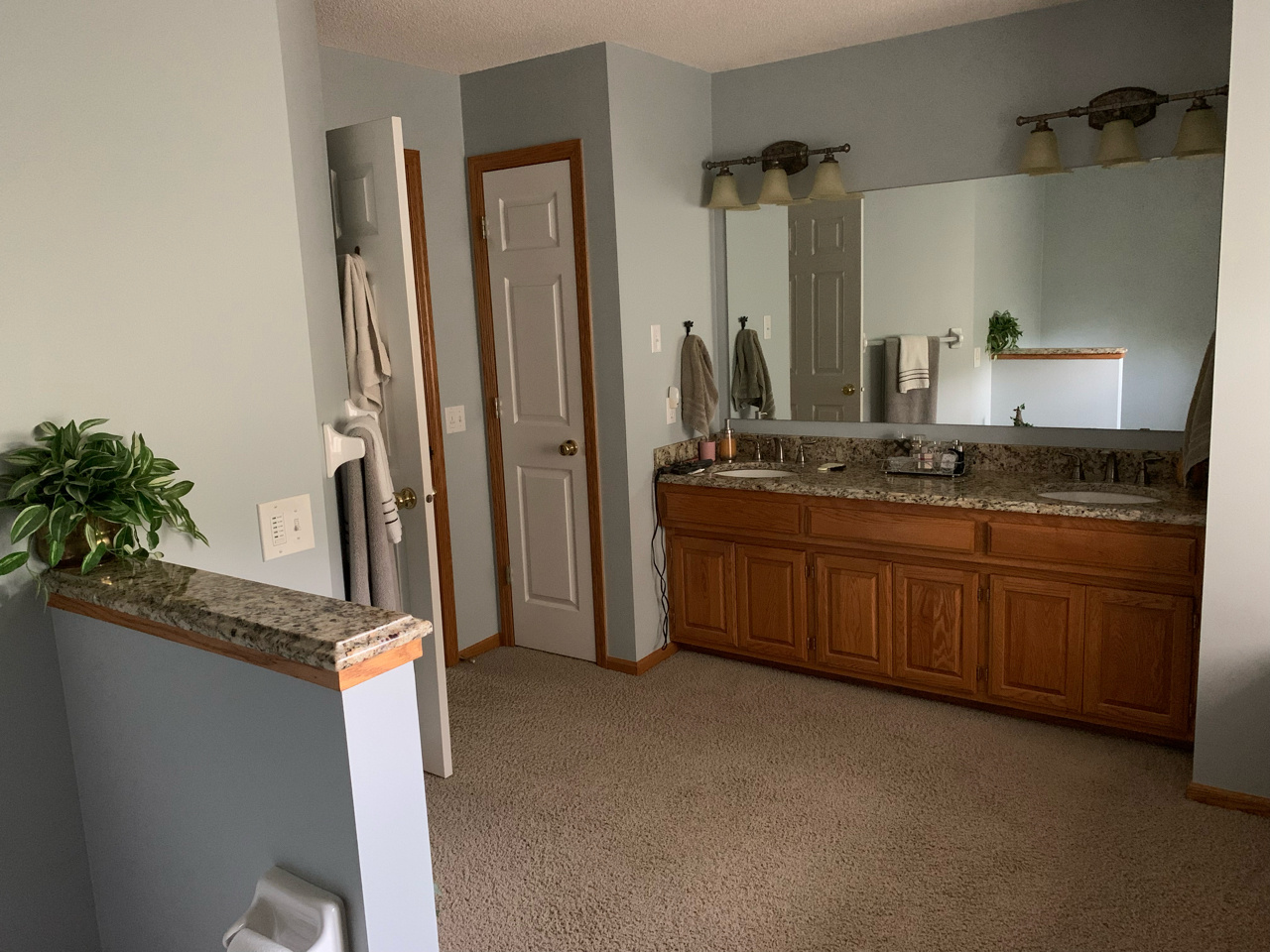

BEFORE: Honey oak vanity from shower perspective, with half-wall separating commode space from the rest of the bathroom.


After

“Again, the honey oak is everywhere in this home and the bathroom is no exception,” says Murphy Bros. Design/Build Consultant Theresa Mann. “So the goal here was to lighten everything up, which we did by using a mix of grey tones and softer whites for contrast. Those subtle changes literally transformed the entire complexion of the space.”

AFTER: ​The shower footprint was enlarged by about 6 inches. The large glass door was removed and replaced with a zero-clearance threshold, a major component of a universal design. We added a bit of glass back as an aesthetic partition which also serves a privacy function.
AFTER: Custom vanity with 24" deep drawers, deco toe kick, flat panel doors, painted in Magnolia True White MAG00.

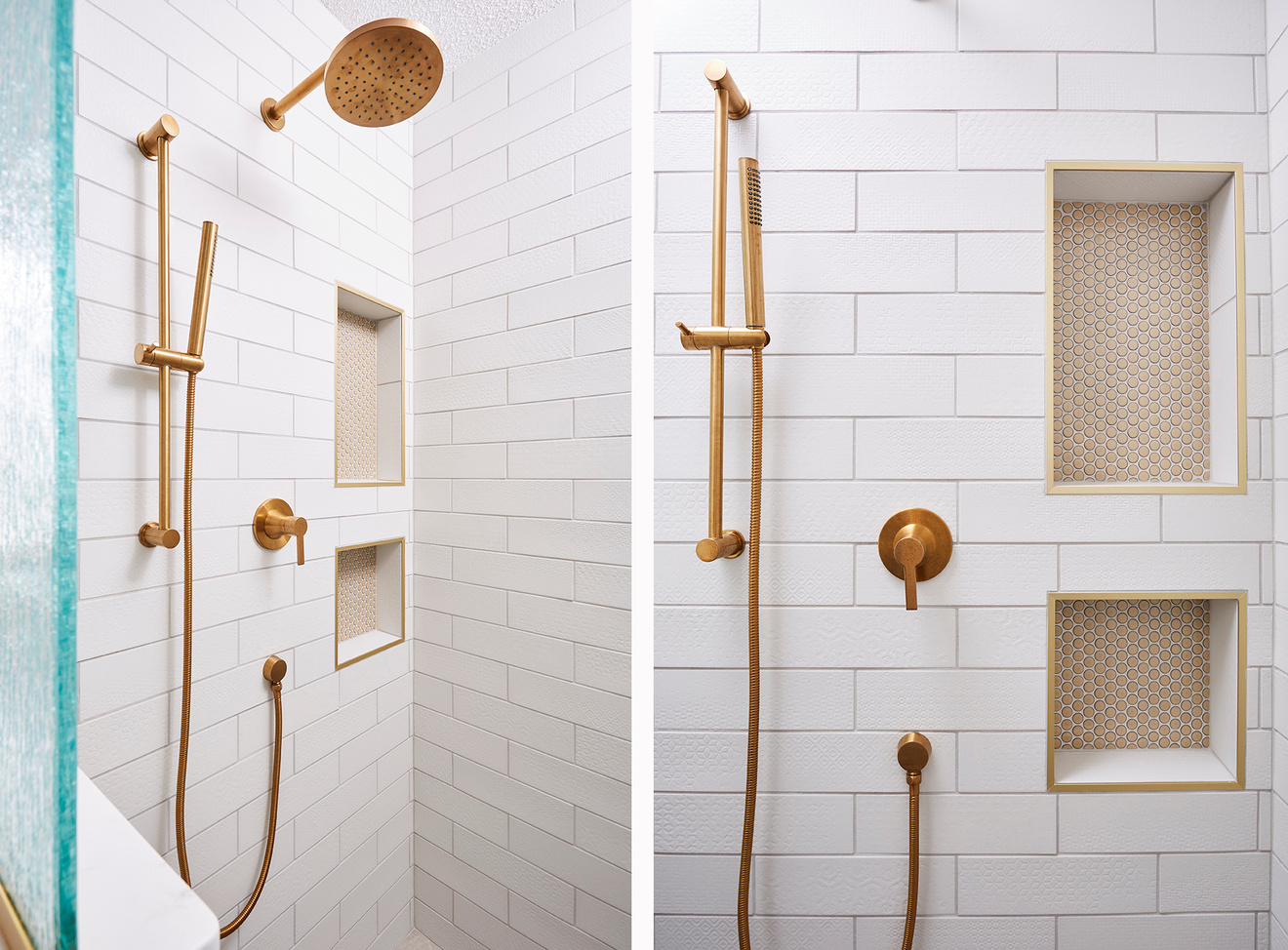

AFTER: Shower insets and fixtures (rainfall shower head). Body tile: Oldy Tile - White (random texture); Accent tile: Avanti Penny Round 2 Mosaics-Sand

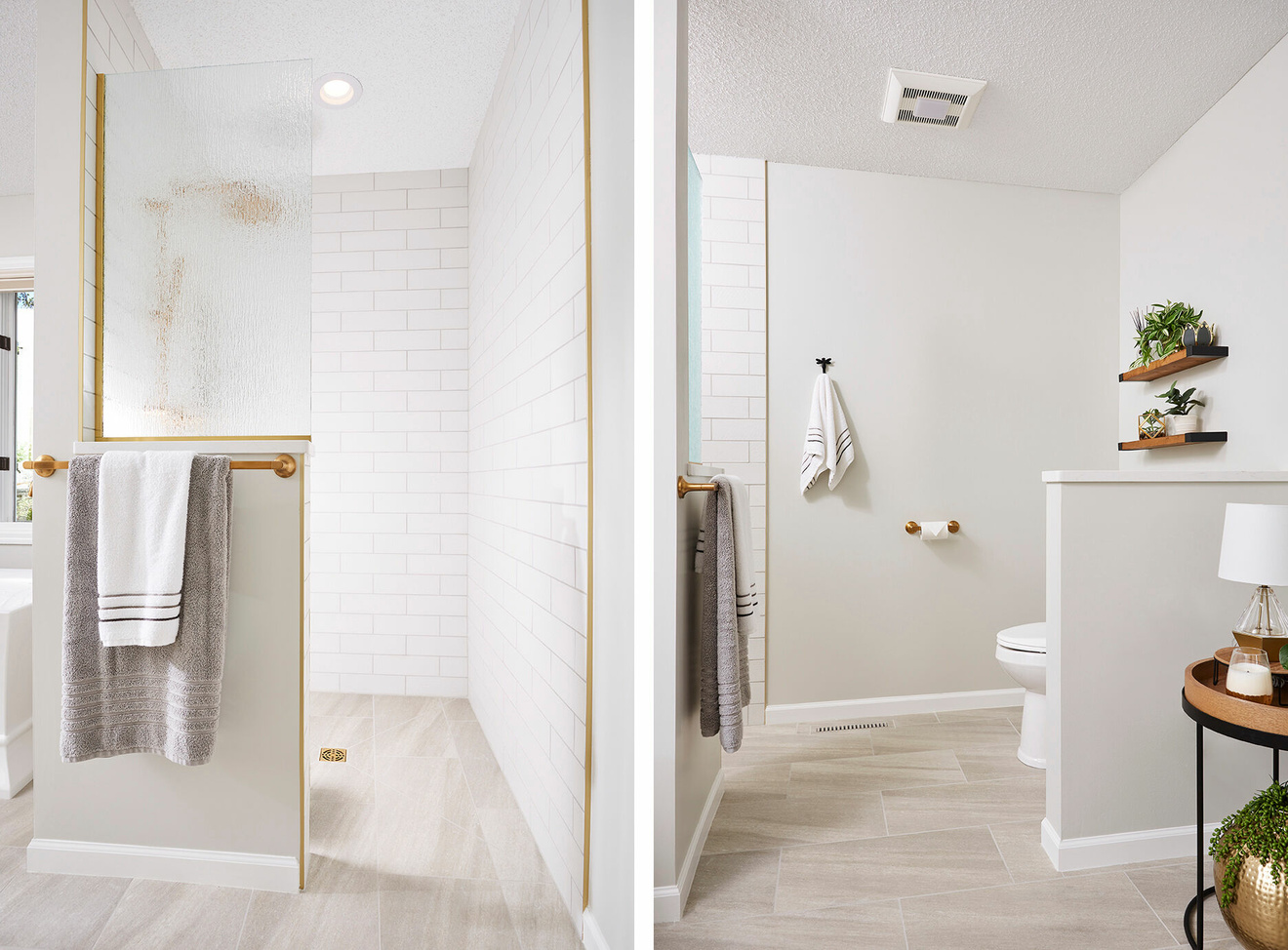

AFTER: Universal design zero clearance shower threshold and half-wall separating commode from the rest of the bathroom with heated floors throughout.

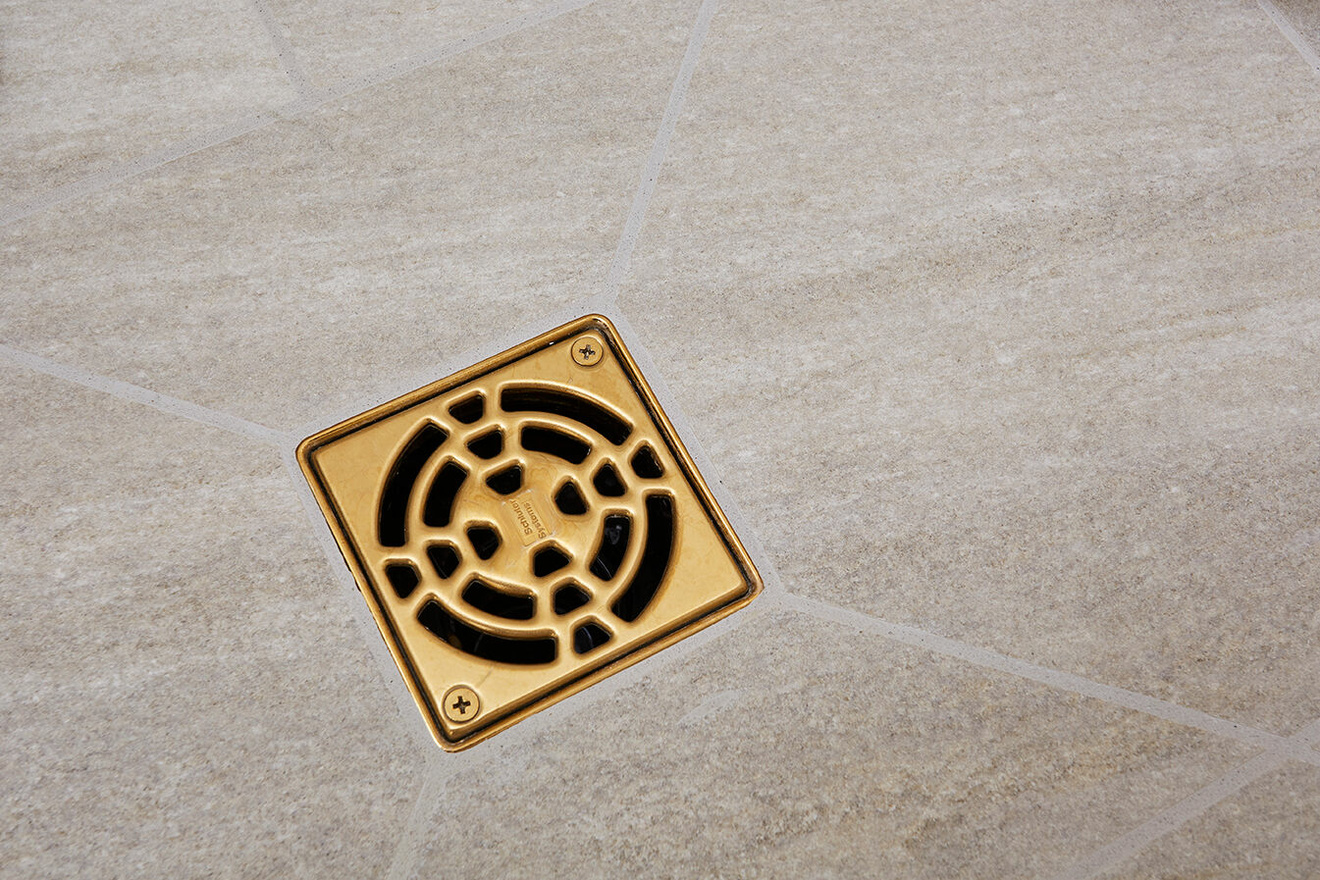

AFTER: Shower floor drain.


Featured Materials

CABINETRY

  • New vanity base- 34.5" high x 21" deep on sink base section and 24" deep at drawers Deco toe kick 3" deep x 4" high
  • Doors: Flat panel with radius inside
  • Drawers: 5 pc flat panel with radius inside
  • Finish: Magnolia Paint - True White MAG00

COUNTERTOPS

  • Vanity top - Vicostone: Misterio, ¼" Radius edge profile

FIXTURES

  • Vanity sinks (2): Kohler K-2833-0 DemiLav 18 ¼" Cast iron sink - white
  • Vanity Faucets (2): Signature Hardware 4466418 Lentz single hole faucet - Brushed Gold
  • Vanity Wall Mirror - Malay 30" x 21" Asian Inspired Bamboo Frame
  • Vanity lights - Ashford 2-light, gold finish
  • Tub: Signature Hardware 462866 Riveria 67'' soaking tub (insulation) - White
  • Tub Filler: Signature Hardware 466434 Lentz floor mount - Brushed Gold
  • Shower Suite: Signature Hardware 476259 Lentz Shower system (shower head and handheld on a slide bar) Brushed Gold

FLOORING

  • Schluter electric floor uncoupling membrane and leveling
  • Floor Tile: (Rubble Tile) Del Conca -Quartzite porcelain tile - 1224QT01 -Sand -Rectified
  • Grout: (Rubble Tile) TEC - 949 Silverado

TILE

  • Body tile: (CTW) 4x12 Oldy Tile - White (random texture)
  • Accent tile: (Rubble Tile) Avanti Penny Round 2 Mosaics-12PR123 -Sand
  • Tile edge: Schluter - Jolly strip - Brushed Brass
  • Grout Color: (Rubble Tile) TEC - 949 Silverado

PAINT

  • Walls: Paint walls - Magnolia Paint - Piece of Cake MAG053 - Satin finish
  • Ceilings: Paint ceilings -SW 7007 Ceiling Bright white
  • Paint all new baseboard trim - Magnolia Paint - True White MAG008
  • Paint doors, casing, window trim (inside bathroom side only) Magnolia Paint - True White MAG008
